REAL WORLD DOMINATION
HOW THE SWITCHBACK ASSAULT WINS
- CHASSIS: Pro-Ride Chassis
- SUSPENSION: 144'' Uncoupled Suspension, Race-Proven IFS, WALKER EVANS® Shocks
- ERGOS/BALANCE: ProTaper® Handlebar, Right Hand Controls
- POWERTRAIN: 800 Cleanfire® Engine, Lightweight Rotor & Jackshaft

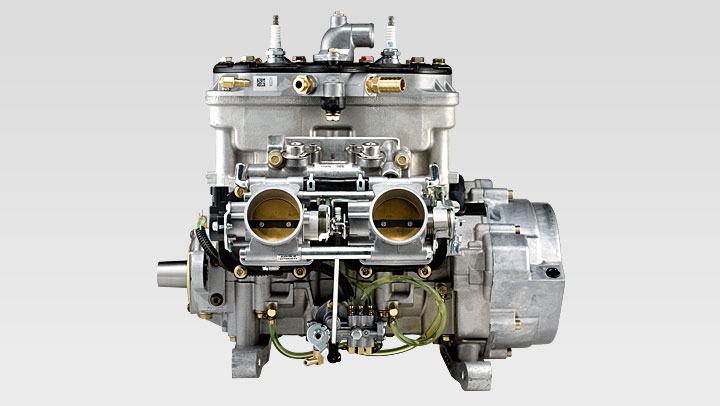

800 CLEANFIRE MOTOR
This liquid-cooled Cleanfire® engine with semi-direct injection (SDI) delivers outstanding throttle response and instant acceleration. These powerful, efficient engines produce the impressive power-to-weight ratios that performance riders demand. Cleanfire engines start easily and reliably and they calibrate automatically as the temperature and elevation change. These engines deliver impressive fuel economy in real-world riding situations, which, for Polaris riders, means aggressive, up-tempo riding, not low-rev lab conditions.

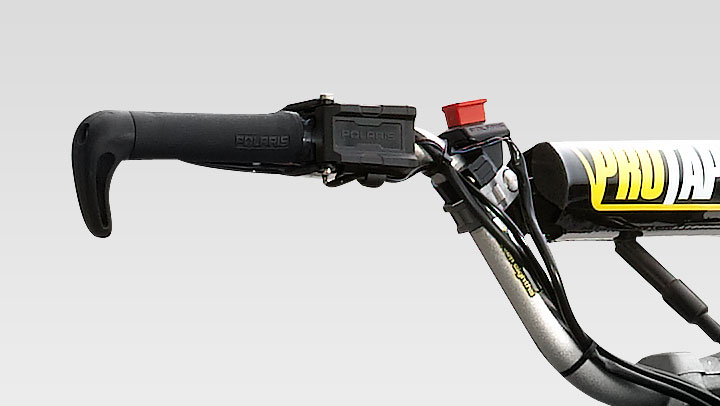

RIGHT HAND CONTROLS
A new, redesigned throttle block and a separate kill switch perch that can be positioned independently for improved ergos and ability to tailor your controls.

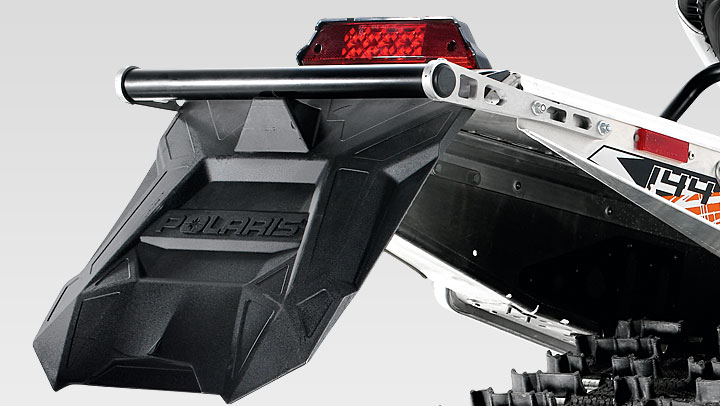

ALUMINUM BUMPER
Aluminum tube matched with extruded billet hangers create a bumper that is strong, light and trick. New snow flap is lightweight and features hand access for when you really dig it in.

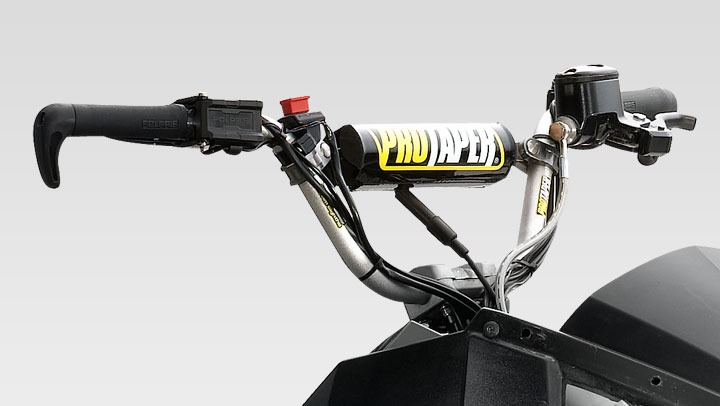

PROTAPER KORMAN
High-rise aluminum design and adjustable bar clamp creates an optimum riding position that can be tailored to your riding style. Bar hooks and race-style master cylinder round out the purpose-built controls.

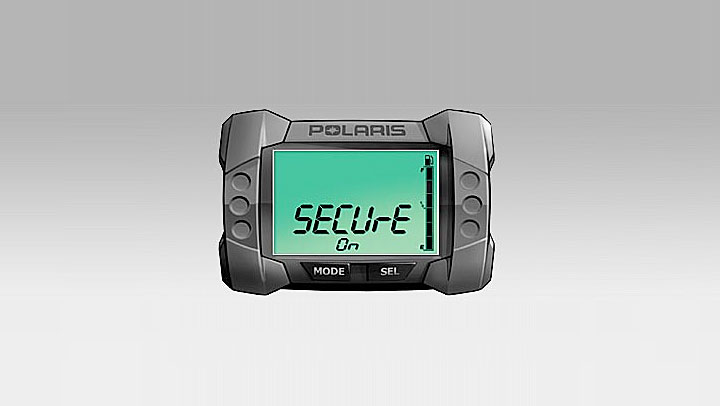

OPTIONAL SECURITY SYSTEM
Prevents unauthorized driveaway of idling sled, and can be installed by dealer on sleds with Pro-Ride Gauge.

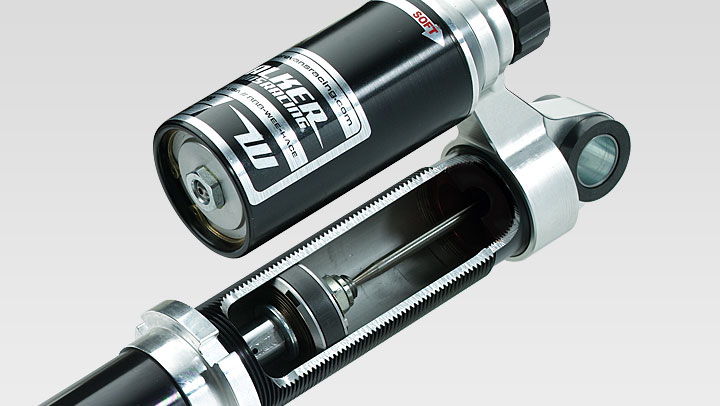

WALKER EVANS AMORTIZERI
Premium shocks with compression adjusters and remote reservoirs offer the best in tunability and fade-proof performance. Unique needle design uses hydraulic force at the end of the stroke to eliminate harsh bottoming.

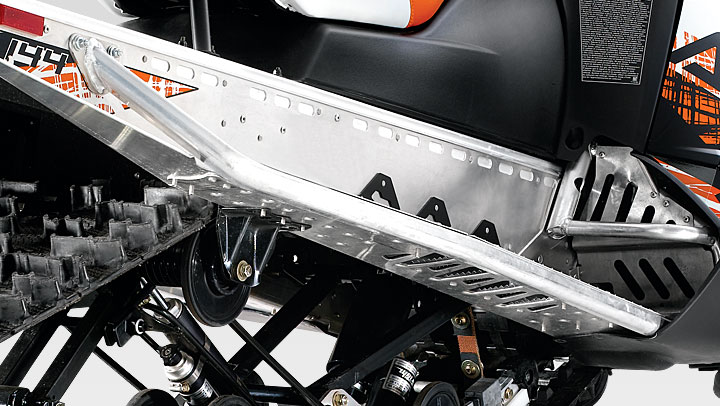

HYBRID™ RUNNING BOARDS
The term Crossover Technology applies here: part RUSH and part RMK. Trail-ready foot stirrups combine with wide running boards, ideal for sitting or stand-up riding. Fishbone tunnel reinforcements standard.

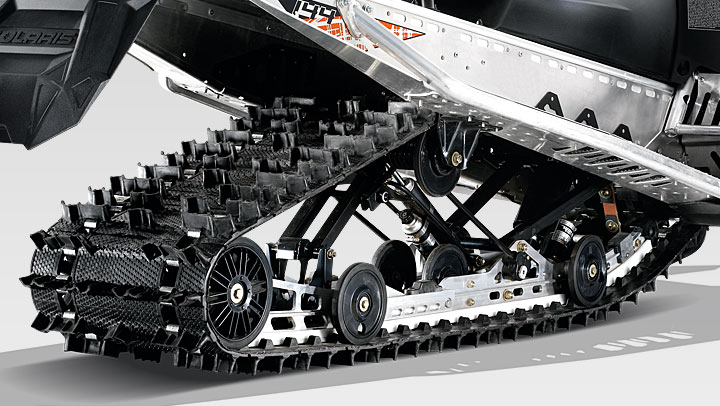

144'' UNCOUPLED SKID
Tipped up rails and rail reinforcements give this Assault a more nimble feel on-trail and added durability. A 15'' x 144'' x 1.352'' Cobra Track for added flotation and off-trail performance.
SPECIFIKACIJE
| Estimated Dry Weight (pounds/kg) | 460 / 209 |
| Overall Length (in./cm.) | 126 / 320 |
| Overall Width (in./cm.) | 48 / 122 |
| Overall Height (in./cm.) | 48 / 122 |
| Ski Center Distance (in./cm.) | 42.5 / 108 |
| Fuel Capacity (gallons/liters) | 11.5 / 43.5 |
| Engine Type/Cooling | Liberty / Liquid |
| Cylinders-Displacement (cc) | 2 - 795 |
| Bore x Stroke (mm) | 85 x 70 |
| Ignition | Digital CDI w/TPS, WTS, DET |
| Exhaust | SC VES, Single |
| Fuel System | Cleanfire Injection |
| Disc Brake Type | Phantom, Hydraulic w/ LWT Disc and Cyclone Master Cylinder |
| Drive System Type | Chaincase |
| Drive/Driven Clutch | P-85 / TEAM® LWT |
| Front Suspension | PRO-RIDE |
| Front Travel (in./cm.) | 10 / 25.4 |
| Front Shocks | Walker Evans® Piggyback Comp. Adj. |
| Ski Type | Pro Steer |
| Rear Suspension | Switchback 144 Tipped |
| Rear Travel (in./cm.) | 15 / 38 |
| Front Track Shock | Walker Evans® Piggyback Comp. Adj. |
| Rear Track Shock | Walker Evans® Comp. Adj. |
| Track Width/Length/Height (in.) | 15 x 144 x 1.352 Cobra |
| Steering | ProTaper® |
| Electric Start | Accessory |
| Reverse | PERC |
| Speedometer | Digital MFD |
| Tachometer | Digital MFD |
| Security System | Option / Accessory |
| Fuel Gauge | Mechanical |
| Temp/Low Oil Light | Digital MFD |
| 12v-DC Outlet | Accessory |
| Handlebar Hooks | Std. Adjustable |
| Hand & Thumb Warmers | Std. Adjustable |
| Heated Passenger Grips | N/A |
| Mirrors | Accessory |
| Seat Type | Lightweight Freestyle |
| Seat Support with Luggage | Accessory |
| Windshield | RMK Mid |
| Color / Graphics | Black / Orange / Assault |
