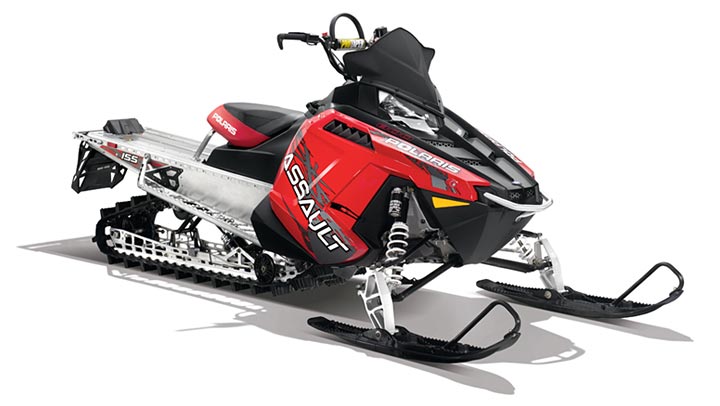

Polaris



































REAL WORLD DOMINATION



HOW THE RMK ASSAULT WINS:

  • CHASSIS: Pro-Ride Chassis with Carbon Fiber Overstructure
  • SUSPENSION: Competition-Spec, Front End, RMK Coil-Over, WALKER EVANS® Shocks
  • ERGOS/BALANCE: PowderTrac™ Running Boards, Pro-Lite Seat, ProTaper® Bars
  • POWERTRAIN: 800 Cleanfire® Engine

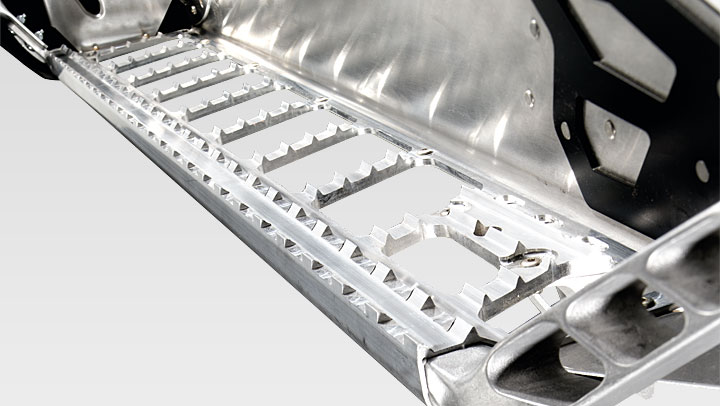

POWDERTRAC™ RUNNING BOARDS

The new PowderTrac™ running boards have been developed for maximum snow clean out and maximum strength. Built from extruded aluminum with bonded cast lugs, they boast an open area of over 50% and integrated traction that is machined in for sure footed performance.

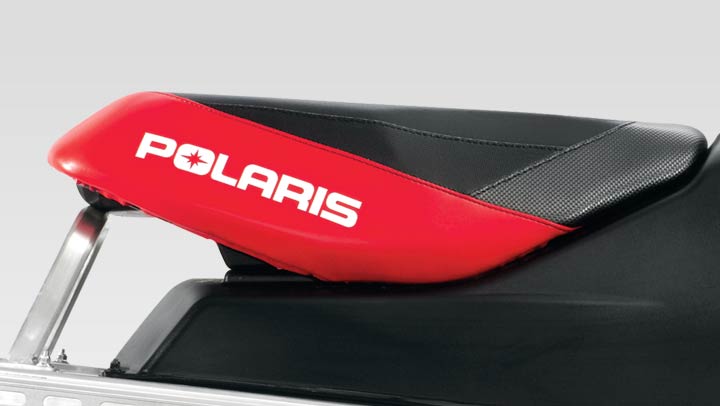

PRO-LITE SEAT

Mountain snowmobiling has changed and so has its seat. The RMK features a new seat design. Shorter by 5.5" allowing you to easily swing a leg from one side to the other —along with a wider, flatter area for more comfortable seated riding.









REDUCED WEIGHT

We know that weight matters. We look at every component and work to make it lighter and stronger. Through our use of industry-leading materials and technology, we deliver on it.

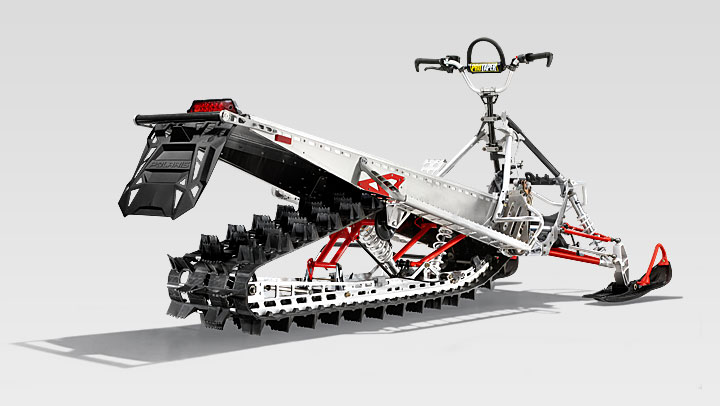

PRO-RIDE CHASSIS WITH CARBON FIBER OVERSTRUCTURE

The world's most advanced chassis - light, rigid and perfectly balanced.

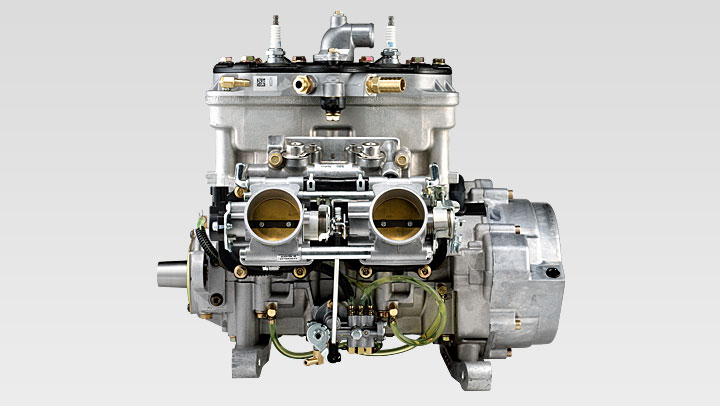

800 CLEANFIRE® ENGINE

This liquid-cooled Cleanfire® engine with semi-direct injection (SDI) delivers outstanding throttle response and instant acceleration. These powerful, efficient engines produce the impressive power-to-weight ratios that deep snow riders demand. Cleanfire engines start easily and reliably and they calibrate automatically as the temperature and elevation change. These engines deliver impressive fuel economy in real-world riding situations, which, for Polaris riders, means aggressive, up-tempo riding, not low-rev lab conditions.

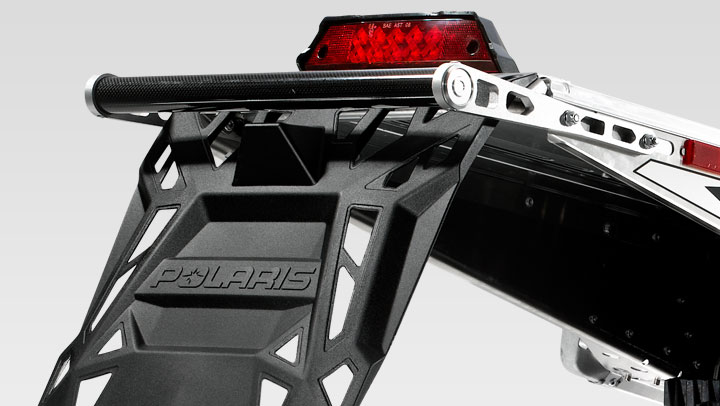

RAW REFINED

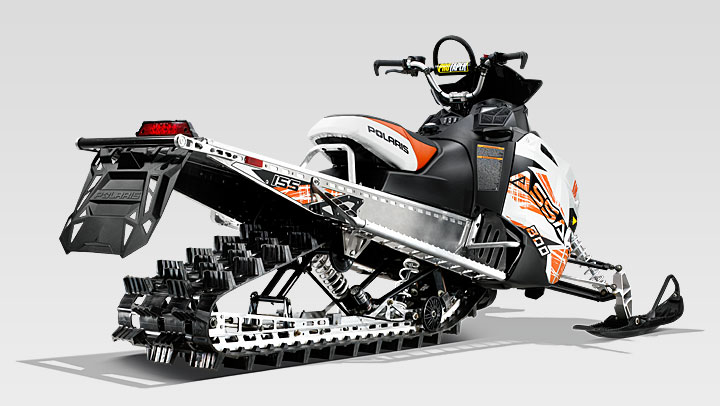

The low-profile LED tailight, lightweight punched snow flap with hand access and carbon fiber bumper with extruded billet mounts add style and function. New, narrower tunnel cooling extrusions save weight.

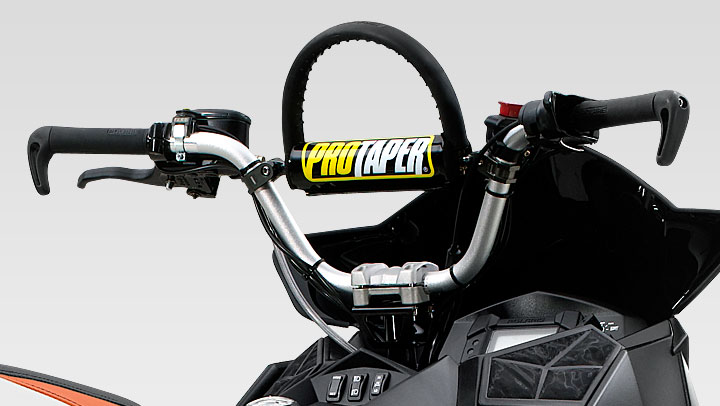

PROTAPER BARS

High-rise aluminum design and adjustable bar clamp create an optimum riding position that can be tailored to your riding style. Bar hooks and race-style master cylinder round out the purpose-built controls.

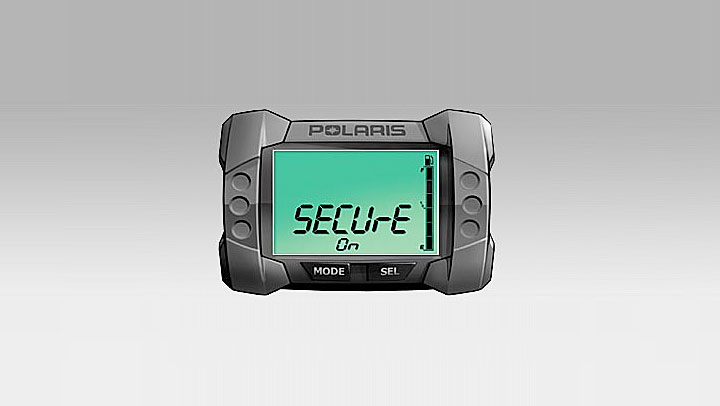

OPTIONAL SECURITY SYSTEM

Prevents unauthorized driveaway of idling sled, and can be installed by dealer on sleds with Pro-Ride Gauge.

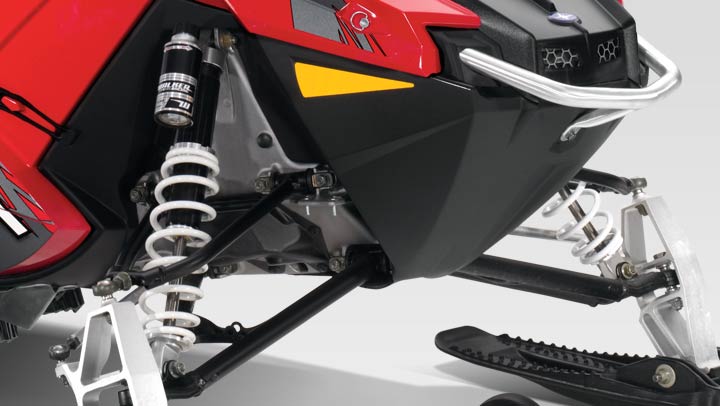

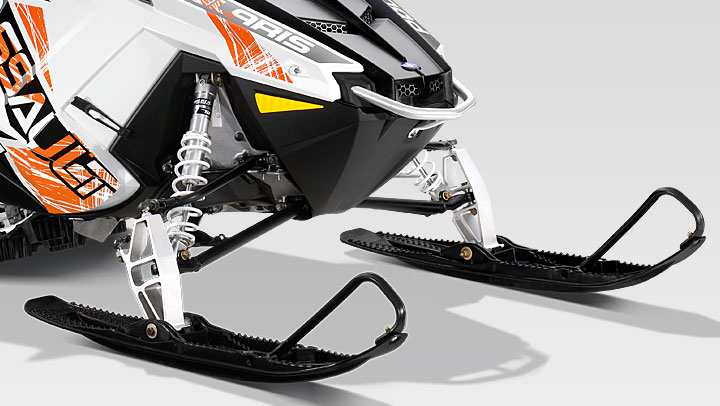

COMPETITION-SPEC FRONT END

Wide and adjustable, this RMK can be dialed for your exact needs. Stiffer sprung and valved, compression adjustable WALKER EVANS® Piggyback shocks are matched to a swaybar-less design.

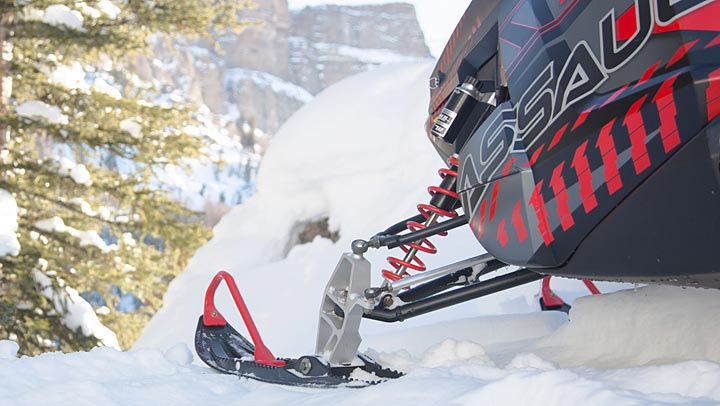

RACE-PROVEN SUSPENSION

WALKER EVANS® 16-position Compression Adjustable Needle Shocks and heavy-duty springs are ideally suited for tearing up Jackson Hole moguls or dropping cliffs.

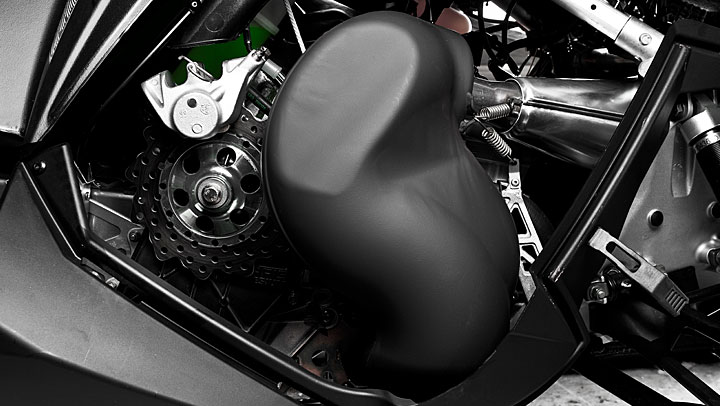

LIGHTWEIGHT SILENCER

The silencer has been designed to keep noise levels and overall weight in check.

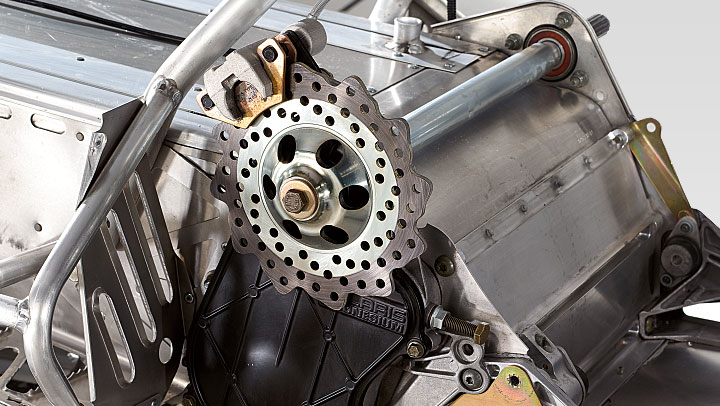

LIGHTWEIGHT ROTOR & JACKSHAFT

Reducing rotating mass allows for a sled with quicker response. Lightweight, purpose-built RMK brake system. Featuring the proven Cyclone master cylinder mated to a lightweight, single-piston caliper.

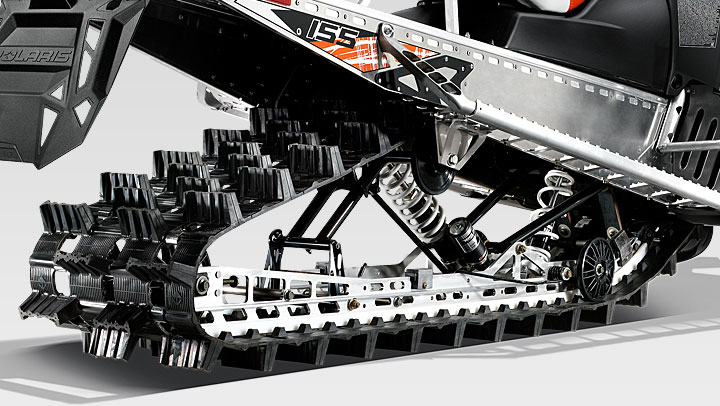

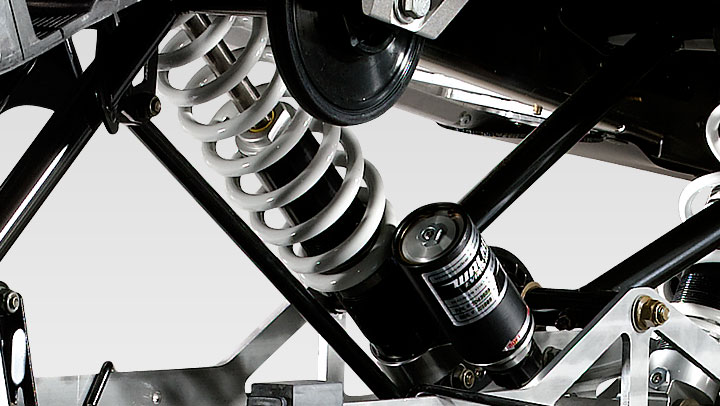

COIL-OVER REAR SUSPENSION

The heart of any mountain sled is the rear suspension. The RMK Coil-Over Rear Suspension is designed for better flotation and deep snow performance with improved on-trail ride. By eliminating the torsion springs and redesigning the torque arms, this skid weighs substantially less. In addition, it is tunable to the snow conditions. A simple turn of the spring preload adjustment allows you change your set-up from deep powder to crusted snow.







2.125'' COMPETITION TRACK

Stiff durometer construction is ideally suited for hillclimb and backcountry use. Pre-punched for quick snow cleanout.

















SPECS

DIMENSIONS
Estimated Dry Weight (pounds/kg) 435 / 197.3
Overall Length (in./cm.) 129 / 327.7
Overall Width (in./cm.) 48 / 121.9
Overall Height (in./cm.) 51 / 129.5
Ski Center Distance (in./cm.) 41.5 - 42.5 - 43.5 / 105.4 - 108 - 110.5
Fuel Capacity (gallons/liters) 11.5 / 43.5



MOTOR & POGON
Engine Type/Cooling Liberty / Liquid
Cylinders-Displacement (cc) 2 - 795
Bore x Stroke (mm) 85 x 70
Ignition Digital CDI w/ TPS, WTS, DET
Exhaust SC VES, Single
Fuel System Cleanfire Injection
Disc Brake Type RMK Lightweight Cyclone
Drive System Type Chaincase
Drive/Driven Clutch P-85 / TEAM® LWT



SUSPENSION
Front Suspension PRO-RIDE Adjustable
Front Travel (in./cm.) 10 / 25.4
Front Shocks Walker Evans®Needle
Ski Type Gripper
Rear Suspension RMK Coil-Over
Rear Travel (in./cm.) 16 / 40.6
Front Track Shock Walker Evans®
Rear Track Shock Walker Evans®Needle
Track Width/Length/Height (in.) 15 x 155 x 2.125 Competition



OPREMA
Steering ProTaper®
Electric Start Option / Accessory
Reverse PERC
Speedometer Digital MFD
Tachometer Digital MFD
Security System Option / Accessory
Fuel Gauge Mechanical
Temp/Low Oil Light Digital MFD
12v-DC Outlet Accessory
Handlebar Hooks Standard
Hand & Thumb Warmers Std. Adjustable
Heated Passenger Grips N/A
Mirrors Accessory
Seat Type Pro Lite
Seat Support with Luggage Accessory
Windshield RMK Mid, Matte Black
Color / Graphics White / Orange / Assault
