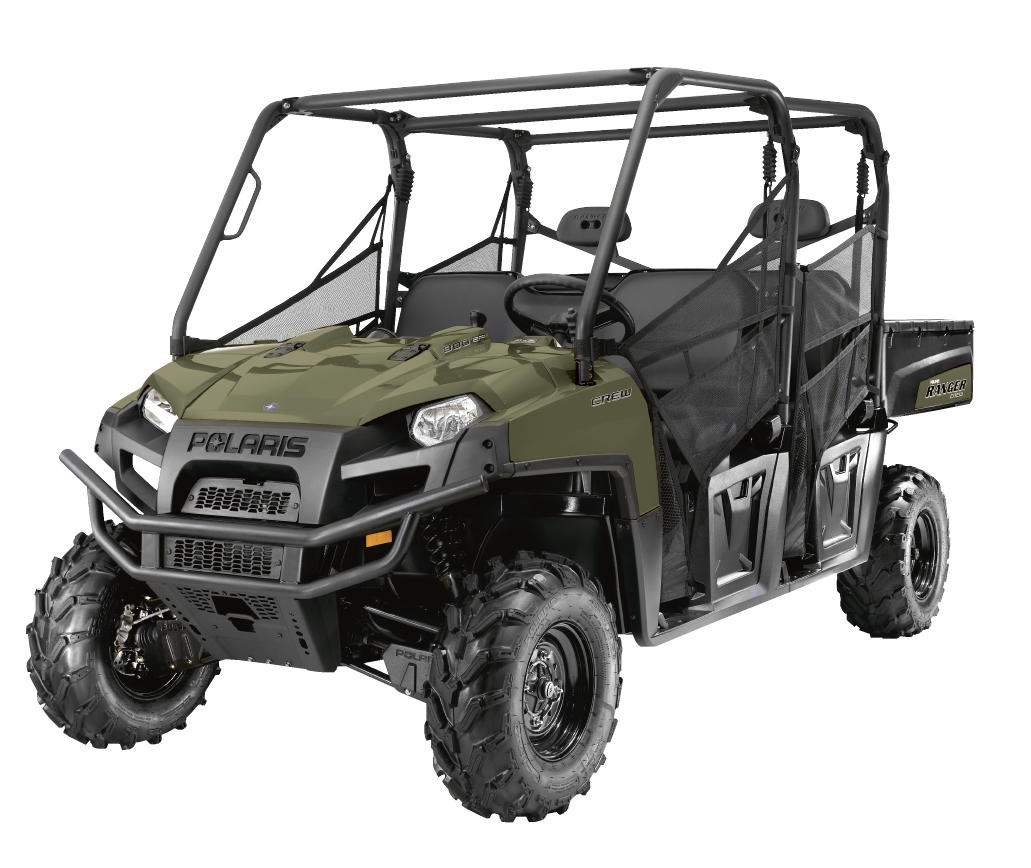

The 2012 RANGER CREW 800 carries 6 adults in total comfort, with leaned seat backs and lots of legroom. Legendary smooth Independent Rear Suspension absorbs all the bumps and ruts - even carrying the whole crew.TOP FEATURES:
- Powerful 40 HP 800 Twin has EFI for fast starts.
- NEW! Improved dash/seat sealing for increased cab comfort.
- On-Demand True AWD maximizes traction.
- 1-ton towing moves equipment and gear.

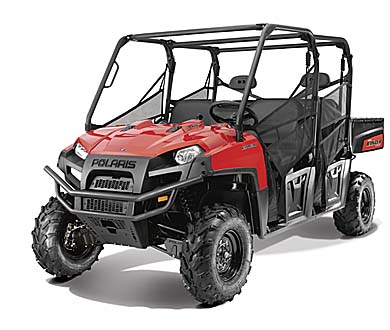

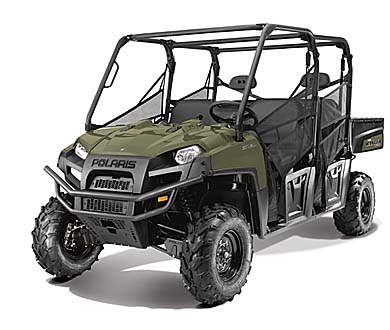

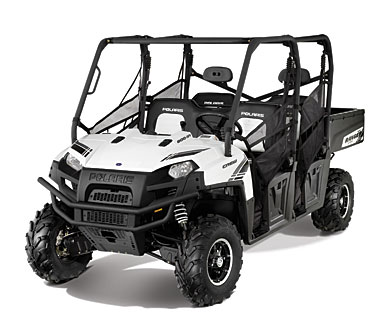

COLORS
POWER

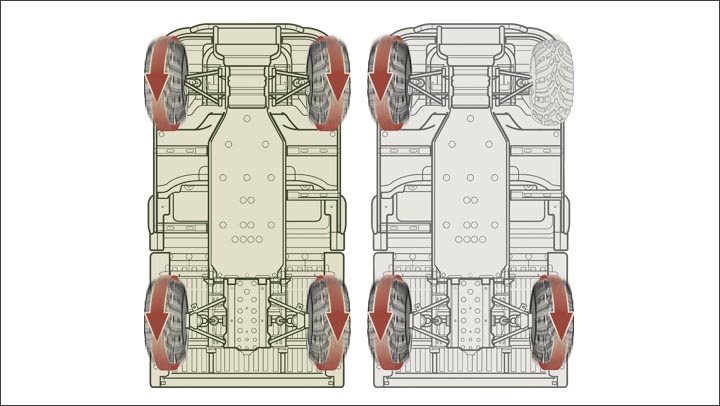

ON-DEMAND TRUE ALL WHEEL DRIVE WITH VERSATRAC TURF MODE
True AWD keeps you moving, automatically engaging all four wheels when you need more forward traction and reverting back to 2WD when you don’t. When in 2WD, the VersaTrac Turf Mode switch unlocks the rear differential for easier, tighter turns that won’t tear up your grass
800 TWIN EFI
Proven 800 Twin EFI engine more than enough power to move six people and their gear. Electronic Fuel Injection (EFI) ensures fast, reliable starting in any temperature, plus automatic adjustments for altitude
Monstrous 1-ton Towing
The strength to tow 2,000 lbs. means you can tackle the toughest jobs, towing trailers and wheeled equipment with confidence. Features a standard 2'' hitch receiver.

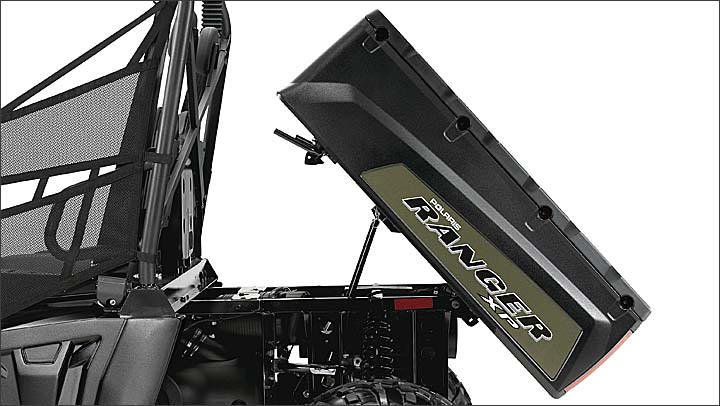

LARGE DUMP BOX WITH LOCK & RIDE CARGO SYSTEM
Pallet-size rear dump box has gas-assist dumping operation and features exclusive Lock & Ride cargo system that accommodates many hard-working accessories that go on and off in seconds.
Massive Under-Seat Storage
If the oversize glove box and three open compartments aren't enough for all your equipment and gear, there's also an extra large storage box under the front seat. It features two divider slots and a 28 gallon capacity.
SUSPENSION
SUPERIOR COMFORT for 6
Carries 6 adults in total comfort, with leaned seatbacks and lots of legroom. 9.6" of front suspension travel combined with independent rear suspension with 9" of travel, helps absorb all the bumps and ruts - even carrying the whole Crew.
INDEPENDENT REAR SUSPENSION (IRS) AND HIGH GROUND CLEARANCE
In rough terrain, our legendary smooth IRS and a full 11.5" of ground clearance combine to keep the ride smooth for you and your passengers, as well as your gear and equipment.
FULLY ADJUSTABLE SUSPENSION
The only four-corner adjustable suspension system. Dual A-Arm with exclusive top mounting-point adjustability. Adjust to softer setting for recreational riding or stiffer for heavy-duty work.

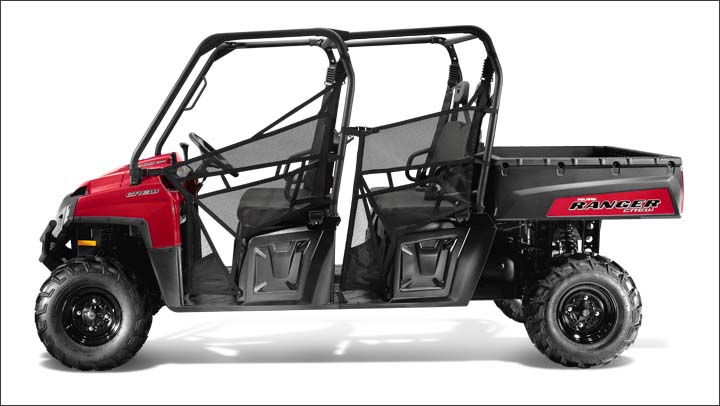

Long Wheelbase for a Smooth Ride
The longer wheelbase of the RANGER CREW, combined with advanced long-travel suspension, create a smooth ride even when fully loaded. A full 11.5” of ground clearance adds to the comfort by clearing obstacles and moving smoothly through ruts and over rough terrain.
SPECS
| Engine Type | 4-Stroke Twin Cylinder |
| Displacement | 760cc - 40hp |
| Fuel System | Electronic Fuel Injection |
| Cooling | Liquid |
| Transmission/Final Drive | Automatic PVT H/L/N/R; Shaft |
| Drive System | On-Demand True AWD/2WD/ VersaTrac Turf Mode |
| Engine Braking System/ Active Descent Control | Not Equipped |
| Front Suspension | Dual A-Arm 9.6" (24.4 cm) Travel |
| Rear Suspension | Dual A-Arm, IRS 9" (22.9 cm) Travel |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers |
| Parking Brake | Hand-Actuated |
| Front Tires / Model | 26 x 9-12; PXT |
| Rear Tires / Model | 26 x 11-12; PXT |
| Wheels | Stamped Steel |
| Wheelbase | 108" (274.3 cm) |
| Dry Weight | 1,495 lb (678 kg) |
| Overall Vehicle Size (LxWxH) | 145 x 60 x 76" (368 x 152 x 193 cm) |
| Ground Clearance | 11.5" (29 cm) |
| Fuel Capacity | 9 gal (34.1 L) |
| Bed Box Dimensions (LxWxH) | 36.5 x 54 x 11.5" (93 x 137 x 29 cm) |
| Box Capacity | N.A./1,000 lb (453.6 kg) |
| Payload Capacity | 1,750 lb (793.8 kg) |
| Hitch Towing Rating | 2,000 lb (907.2 kg) |
| Hitch/Type | Standard/2" Receiver |
| Cargo System | Lock & Ride |
| Lighting | 55W low/ 60W high, LED Tail |
| Electronic Power Steering | Not Equipped |
| Instrumentation | Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (3) |
COMPETITIVE COMPARISONS
| RANGER CREW® 800 | KAWASAKI MULE™ 4010 TRANS 4X4© | KUBOTA RTV™ 1140 | |
| independent rear suspension | Yes | No | No |
| towing | 2000 lb. (907.2 kg) | 1200 lb. (544.3 kg) | 1300 lb. (589.7 kg) |
| suspension | 9.6/9 in. (24.4/22.9 cm) | 3.9/2.8 in. (9.9/7/1 cm) | N/A |
| seating | 6 | 4 | 4 |
| clearance | 11.5 in. (29.1 cm) | 7.1 in. (18.1cm) | 7.5 in. (9.0 cm) |
| horsepower | 40 HP | 25 hp | 24.8 HP |
